GYF(X)BY Non-Metallic Aerial Flat Drop Cable
BY-cable.png)

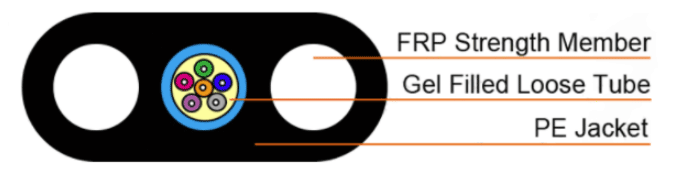

Flat fiber optic drop cable also called fiber optic GYFBY cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line. PE Sheath FRP Flat Drop Cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
Application
1. Designed for indoor and outdoor FTTH deployment
2. High connecting usability, easy access to the fiber core
3.Reinforced with 2 FRP rods, high tensile strength
4.Full dielectric and high flexibility design
5.Fire redundant protect and UV radiation protection
6.Minimum dimension and weight
7. Fiber cores located in PBT loose tube
Parameters
Application
1. Designed for indoor and outdoor FTTH deployment
2. High connecting usability, easy access to the fiber core
3.Reinforced with 2 FRP rods, high tensile strength
4.Full dielectric and high flexibility design
5.Fire redundant protect and UV radiation protection
6.Minimum dimension and weight
7. Fiber cores located in PBT loose tube
Parameters
| ltems | Specification | |
| Fiber Count | 24 | |
| Colored Coating Fiber | Dimension | 250+-15um |
| Color | Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua. | |
| Loose Tube | Dimension | 2.7+-0.1mm |
| Material | PBT | |
| Color | Natural | |
| strength Member | Dimension | 2.0mm |
| Material | FRP | |
| Color | Natural | |
| outer Jacket | Dimension | (8.5+-0.3)mmx(4.5+-O.2)mm |
| Material | PE | |
| Color | Black | |
