GJYXFHA/GJXFHABow-type FTTH Drop Cable for Duct

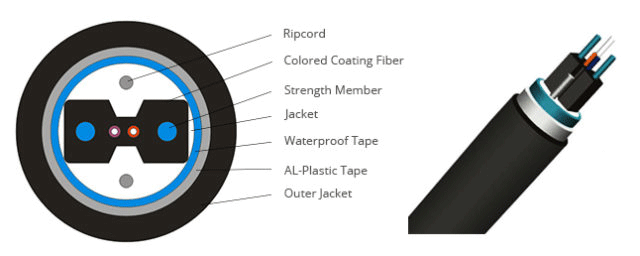

Duct FTTH Cable is made to connect between user end equipment with outside optical fiber cables, this cable features 2 parallel KFRP strengthen member providing ensure good performance of crush resistance, tensile strength, the duct FTTH cable is made with waterproof tape and AL -Plastic tape, the PE outside jacket make it strong and robust enough for outdoor use, as well as the flame-retardant ability. Duct FTTH cable jacket is environmental friendly-Low smoke, zero halogen, the whole cable is soft and flexible, good bending performance ,suitable for duct FTTH cable deployment.
Duct FTTH Cables Specifications
1. Cable core numbers: 1 or 2
2. Cable diameter: 7mm
3. Cable weight: 52KGs/Km
4. Tensile Load(N): 60
5. Crush Load (N/100mm): 30
6. Bend Radius (mm):1000
7. Fiber type: G652d /G657
Duct FTTH Cables Features
Duct FTTH Cables Applications
Standards
Reference with standard YD/T1997-2009, ICEA-596 ,GR-409, IEC60794,etc
Duct FTTH Cables Specifications
1. Cable core numbers: 1 or 2
2. Cable diameter: 7mm
3. Cable weight: 52KGs/Km
4. Tensile Load(N): 60
5. Crush Load (N/100mm): 30
6. Bend Radius (mm):1000
7. Fiber type: G652d /G657
Duct FTTH Cables Features
- Environmental friendly Low smoke, zero halogen and flame-retardant cable sheath.
- Special bend insensitive fiber provides high bandwidth and excellent communication transmission quality.
- Suitable for FTTH duct access cabling.
- Soft and flexible, good bending performance, easy to handle.
- Two KFRP strengthen members ensure good performance of crush resistance, tensile strength to protect the optical fiber.
- AL-plastic tape enable the cable crush resistant and moisture proof.
Duct FTTH Cables Applications
- Used in FTTH duct access cabling between users and outside feeder cables
- Deployment in small bending environment
- Used for both indoor and outdoor
| Cable Code | Fiber count | Cable size mm | Cable weight kg/Km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/1000mm | Bending Radius Dyna mic / Static mm |
| GJYX(F)HA-1 | 1 | Ø7.0 | 49 | 300/600 | 1000/2200 | 10D/20D |
| GJYX(F)HA-2 | 2 | Ø7.0 | 49 | 300/600 | 1000/2200 | 10D/20D |
| GJYX(F)HA-4 | 4 | Ø7.0 | 49 | 300/600 | 1000/2200 | 10D/20D |
| GJYX(F)HA-6 | 6 | Ø7.0 | 49 | 300/600 | 1000/2200 | 10D/20D |
Standards
Reference with standard YD/T1997-2009, ICEA-596 ,GR-409, IEC60794,etc
